Product Description

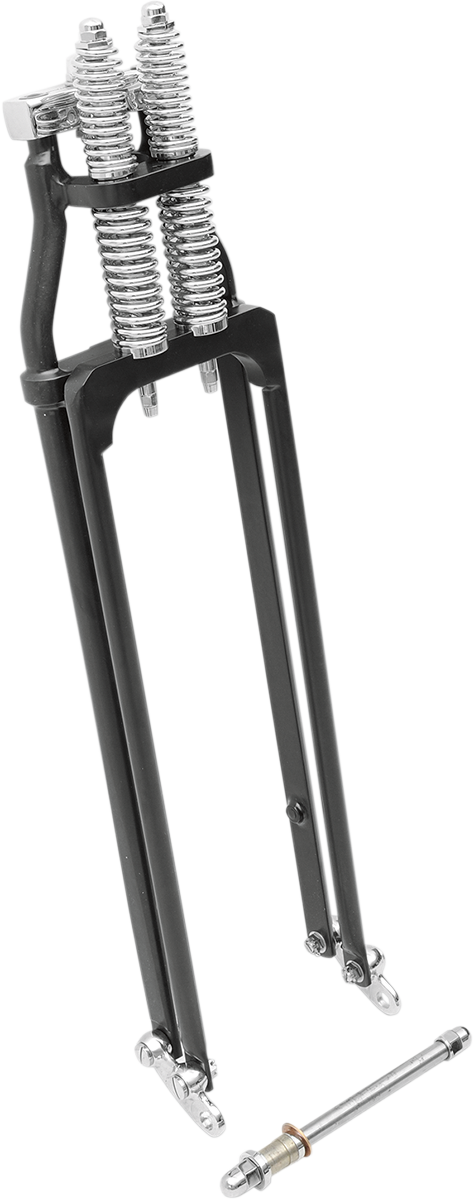

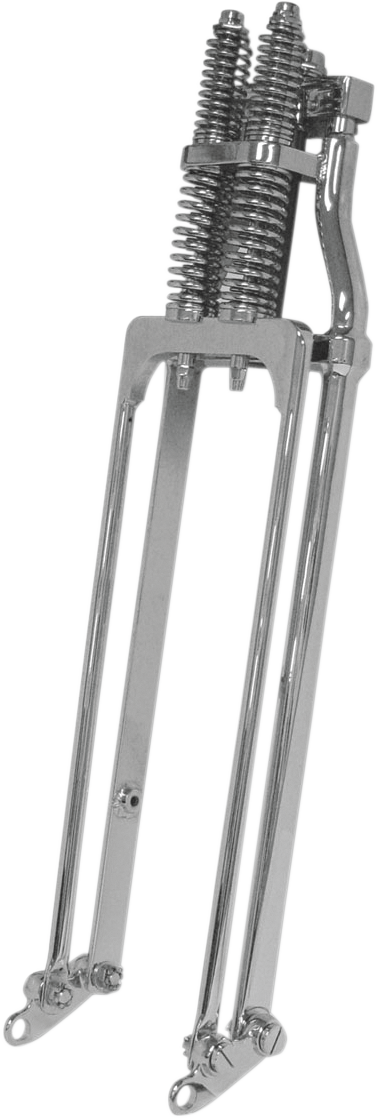

Get the performance you need with the DRAG SPECIALTIES Custom Springer Forks — Lowers 2.00″, available now at Knobtown Cycle. Kansas City’s trusted source for quality motorcycle parts.
Key Features
- Economical alternative to a shock dampened-type Springer
- Fully assembled with an in-line top bracket without a built-in rake
- The standard length Springer (31″ measured from top bearing to the axle) is comparable to a standard-length FXST front end
- 1″ O.D. steering stem designed for Timken® type bearings
- Both rear legs are threaded for right or left brakes
- The 3/4″ O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)
- Measures 9-1/4″ between Rockers
- Riser mounts are on 4-3/4″ centers and threaded 1/2″-20
- Requires wheel compatible with 3/4″ O.D. axle
- These Springers are measured from the bottom of the top tree to the center of the axle
- Springers do not accept spotlight bars; no fender mounts.
Product Specifications
- Part Number: 04010078
- Brand: DRAG SPECIALTIES
- Weight: 50.40 lbs
Professional Installation Available
Buy online with ship-to-store for free installation at our Kansas City shop, or visit our showroom today!
Features
- Economical alternative to a shock dampened-type Springer
- Fully assembled with an in-line top bracket without a built-in rake
- The standard length Springer (31" measured from top bearing to the axle) is comparable to a standard-length FXST front end
- 1" O.D. steering stem designed for Timken® type bearings
- Both rear legs are threaded for right or left brakes
- The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)
- Measures 9-1/4" between Rockers
- Riser mounts are on 4-3/4" centers and threaded 1/2"-20
- Requires wheel compatible with 3/4" O.D. axle
- These Springers are measured from the bottom of the top tree to the center of the axle
- Springers do not accept spotlight bars; no fender mounts.
