Product Description
Find the right fit with the HASTINGS RINGS 80″ EVO +.005, available at Knobtown Cycle in Kansas City.
Key Features

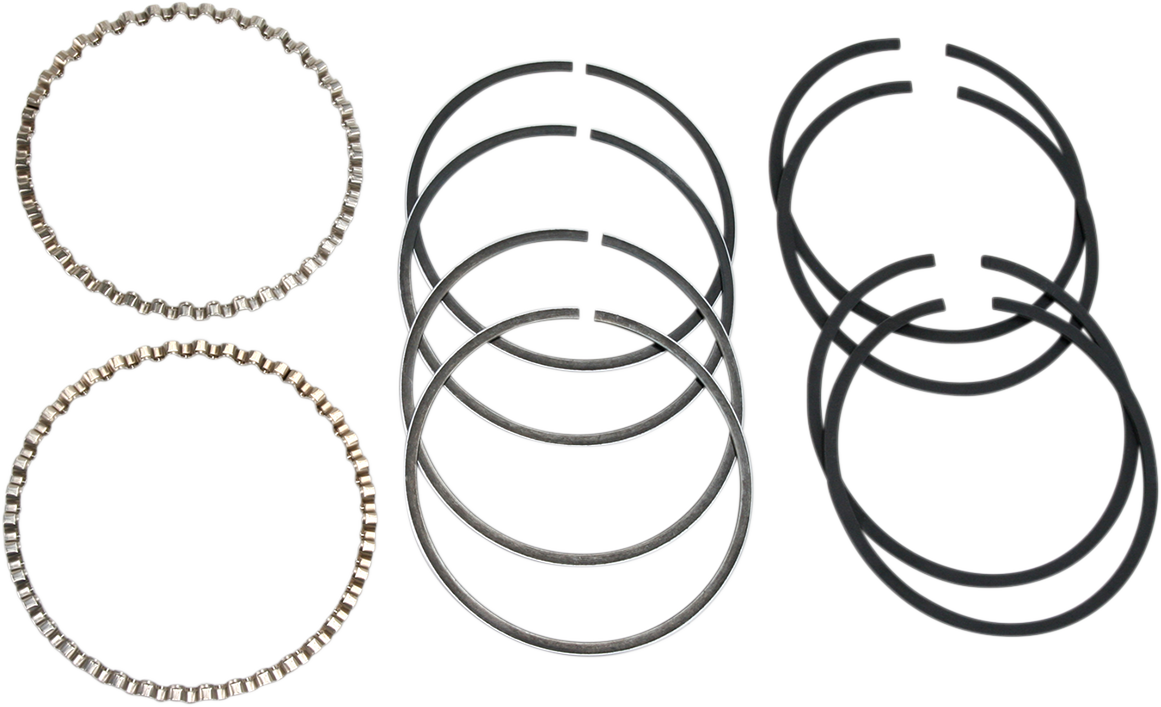

- Includes top compression rings, second compression rings, and oil control rings
- Top Compression Rings are Barrel Face
- Cast coated
- Helps in the the heat transfer process between the piston and cylinder wall
- Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
- Second Compression Ring are Reverse Torsional Taper Face
- Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
- Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
- Oil Control Rings are Three Piece Flex Vent
- Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
- Provides uniform pressure through four steel rails and two expanders assuring positive oil control
- Made in the USA
- Includes enough rings for two pistons (unless noted).
- Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Product Specifications
- Part Number: DS750654
- Brand: HASTINGS
- Weight: 0.25 lbs
- UPC: 075538112228
Professional Installation Available
Buy online or visit our Kansas City showroom. Contact us for installation service options! Free Ship to Store!
Notes: XL 1200 APP S/B 88-03 €€25PJL
Part Locations
| Location |
Available |
| Wisconsin (WI) |
7 |
| New York (NY) |
9 |
| Texas (TX) |
0 |
| Nevada (NV) |
8 |
| North Carolina (NC) |
7 |
| National Total |
20+ |
Stock levels last updated: February 1, 2026 10:17 AM
