Product Description

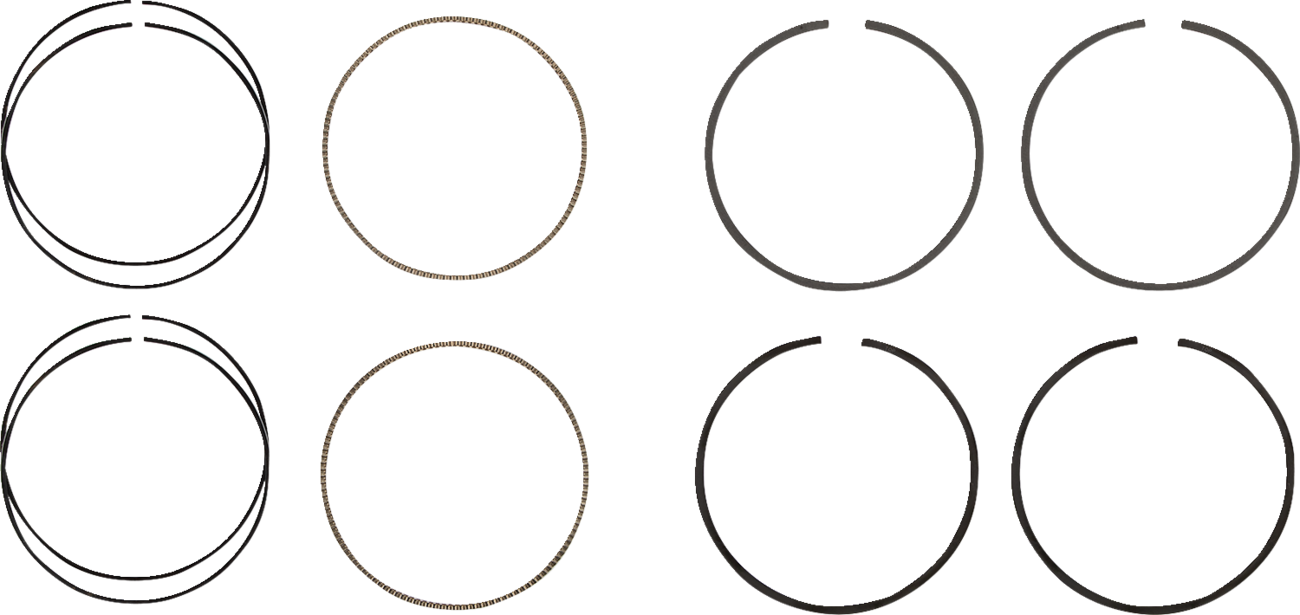

HASTINGS Piston Rings – 107″ Motor – 3.937″ Standard – M8
Key Features
- Includes top compression rings, second compression rings, and oil control rings
- Top compression rings are Barrel Face
- Coated using PVD (Physical Vapor Deposition) process
- Helps in the the heat transfer process between the piston and cylinder wall
- Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
- Second compression rings are Napier
- Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
- Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
- Oil control rings are Three Piece Flex Vent
- Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
- Provides uniform pressure through four steel rails and two expanders assuring positive oil control
- Made in the USA
- Includes enough rings for two pistons.
- Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Technical Specifications
- Weight: 0.19 lbs
- Supplier Number: 2C5231
- Unit of Measure: Set
