Product Description
Knobtown Cycle proudly offers the JE PISTONS PISTN KT HON 1000 STD 9:1. Kansas City’s motorcycle parts experts since 2004.
Key Features
- Aligned Grain Flow Technology – In-house forging has allowed JE to develop proprietary forging technology that directs the grain flow of the aluminum to flow around critical areas of the piston, increasing strength
- Lateral gas ports channel combustion gases to the back of the top ring groove adding pressure behind the compression ring to keep it pushed against the cylinder, providing improved and more consistent ring seal, critical in boosted applications
- Ultra-thick ring lands aid in maintaining ring stability in forced induction and high-horsepower N/A engines, contributing to consistent ring seal and consistent power
- Thermal barrier crown ceramic coating on the piston crown greatly reduces heat transfer into the piston material, decreasing fatigue and improving longevity
- Proprietary, moly-based dry film skirt coating is applied in-house and reduces operating friction for better wear resistance
- Accumulator groove provides additional volume to trap unwanted gases below the top ring to keep pressure low and ring seal and performance high
- Two oil channels fed into the pin bore maintain proper lubrication to improve wrist pin and pin bore wear resistance

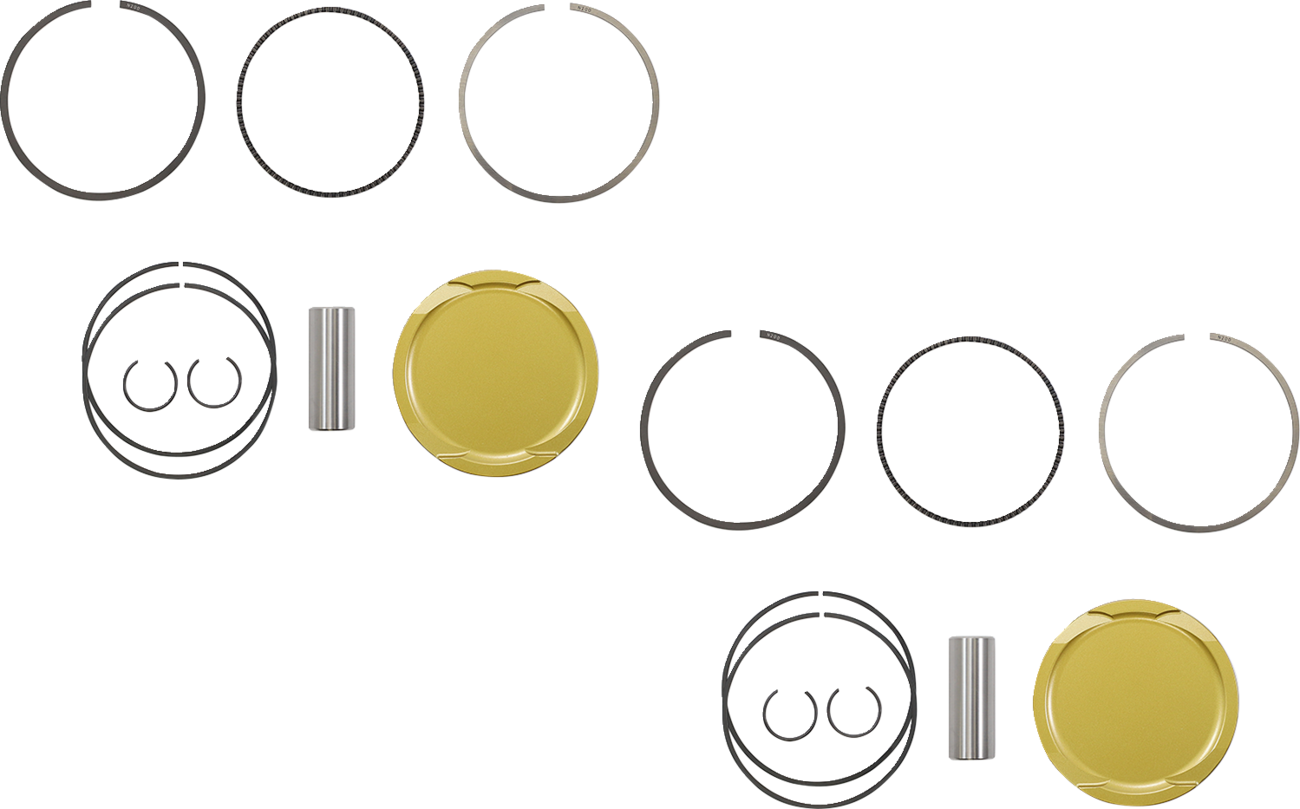

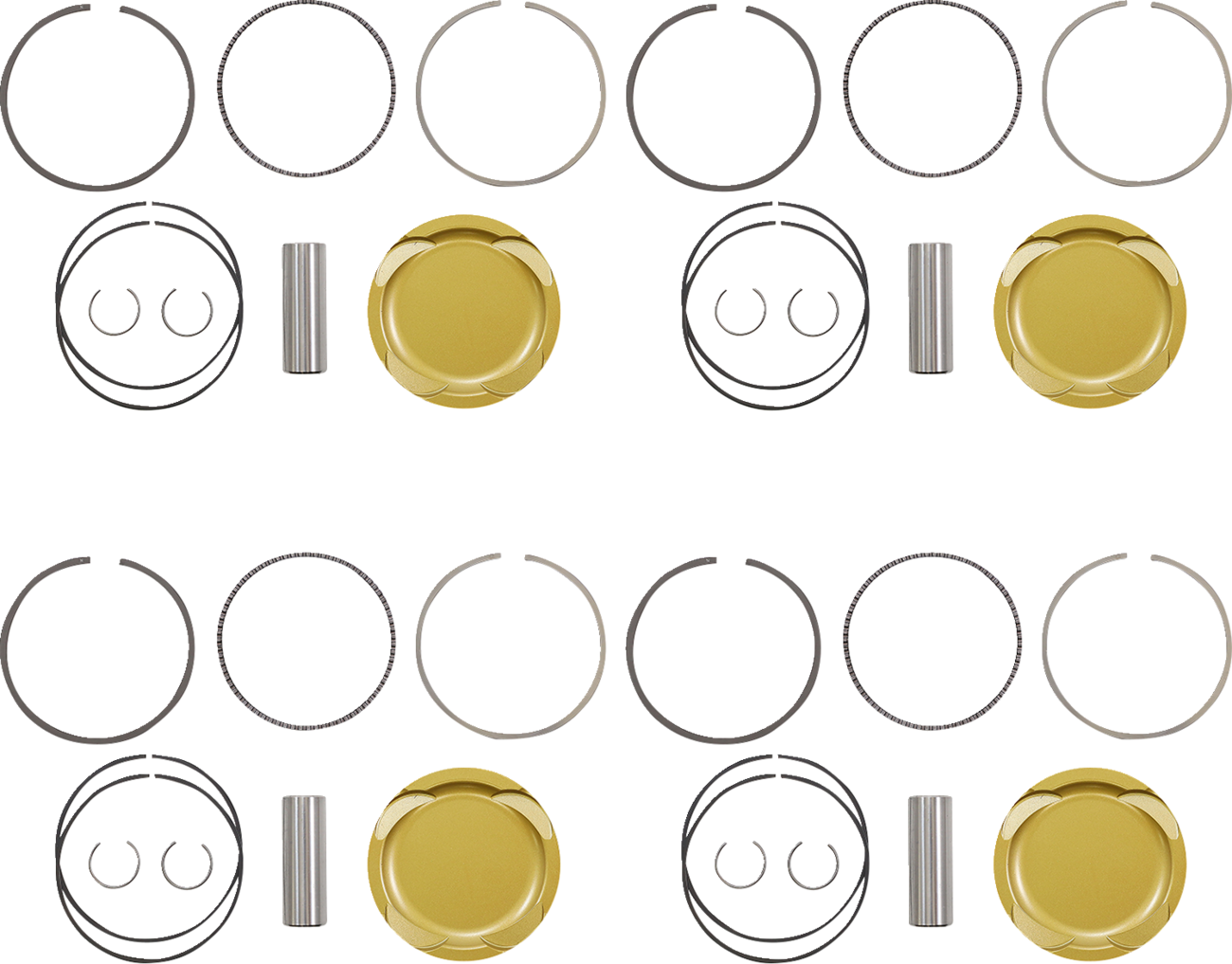

- Complete kit includes all necessary pistons, rings, wrist pins, and wire locks under one part number
- Upgraded 9310 wrist pins are stronger and thicker, designed to withstand additional loads of forced
Product Specifications
- Part Number: 09106524
- Brand: JE PISTONS
- Weight: 2.79 lbs
- UPC: 193564456519
