Product Description

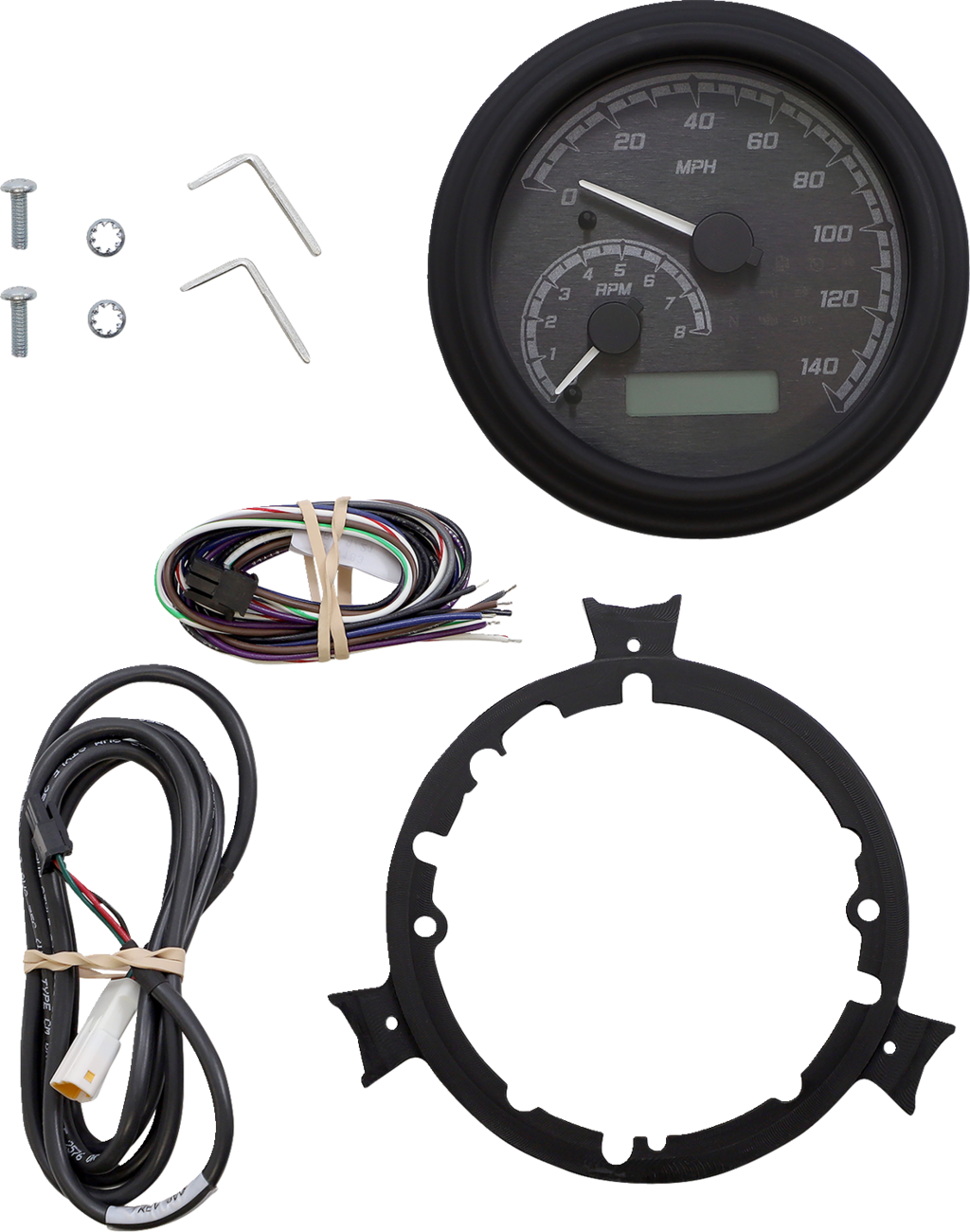

DAKOTA DIGITAL MVX Series Fatbob Analog/Digital Gauge System – Black/Gray/Black

Key Features

• Has 140 mph speedometer, tachometer, odometer, dual resettable trip meters, and full indicator light complement (turn signal, high beam, neutral, low oil pressure) in one stylish gauge
• Systems for ’99-’03 models feature seven user-selectable colors for pointer, backlight and LCD message center (red, green, blue, teal, magenta, amber or white)
• Systems for ’11-’22 models feature 31 user-selectable colors or pointer, backlight and LCD message center
• 8,000 rpm tachometer has adjustable shift point and can display in digital numeric readout
• Resettable miles to service with a warning (user settable countdown) and hour meter
• Clock function (12-hour format)
• Voltage readout with low-voltage alert
• Cylinder head temperature sensor (if bike is equipped with factory sender unit)
• Oil pressure sending unit (sold separately, part #s 2212-0513 or DS-250019
• Seven-speed gear position indicator, compatible with 3- to 7-speed transmissions
• Security system indicator
• Automatic turn signal cancelling compatible
• Wait to start/check engine light function
• Can perform performance calculations such as 0-60 time, top speed and peak rpm recall, 1/4 mile time and speed
• Wiring installation is cut/splice; not a direct plug-in gauge
• Case diameter measures 4-1/4″ and bezel diameter of 4-5/8″

Technical Specifications

• Weight: 1.51 lbs
• Supplier Number: MVX-2004-KG-K
• Unit of Measure: Kit

Current Warehouse Inventory

Stock by Location:

• ✓ Janesville, WI: 3 units
• ✓ Batavia, NY: 2 units
• ✓ Dallas, TX: 1 units
• ✗ Fresno, CA: 0 units
• ✓ Reno, NV: 2 units
• ✓ Asheville, NC: 1 units
• ✓ National: 9 units

Total Available: 18 units
