Product Description

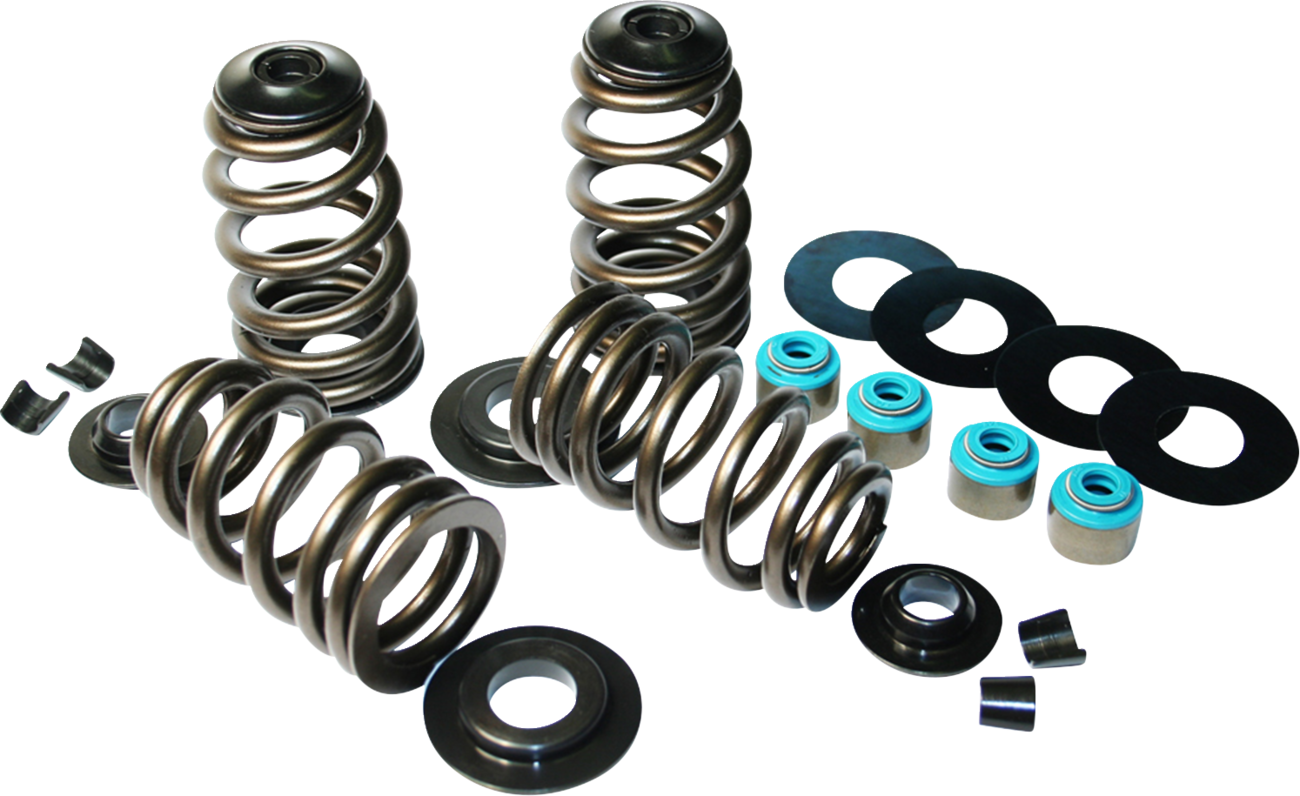

FEULING PARTS Valve Spring Kit – Econo Beehive with Steel Retainers – Twin Cam

Key Features

• Made from premium stress-relieved conical ovate wire
• Features extremely high-level of fatigue life
• Uses a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
• Designed to handle the demands of performance engines with 0.585″ and smaller lift camshafts
• Kit includes: Econo BeeHive® valve springs, lightweight 7° steel retainers, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
• Seat lb/installed height; 183 lb at 1.770″ (0.510″ lift)
• 175 lb at 1.795″ (0.535″ lift)
• 172 lb at 1.813″ (0.553″ lift)
• 165 lb at 1.835″ (0.574″ lift)
• 160 lb at 1.845″ (0.585″ lift)
• 380 lb at 1.260″ open height coil bind at 1.190″
• Dyno proven and track tested
• Feuling® BeeHive® valve springs must be installed at the correct open height, matching max lift to the open height spec of the valve springs
• Made in the USA
• Econo BeeHive® kit is direct replacement with no machining or rocker box clearance required for cams up to 0.574″ lift for ’84-’04 Big Twin and ’86-’03 XL and up to .585″ lift for ’05-’17 Twin Cam.

Technical Specifications

• Weight: 1.65 lbs
• Supplier Number: 1121
• Unit of Measure: Kit
