Product Description

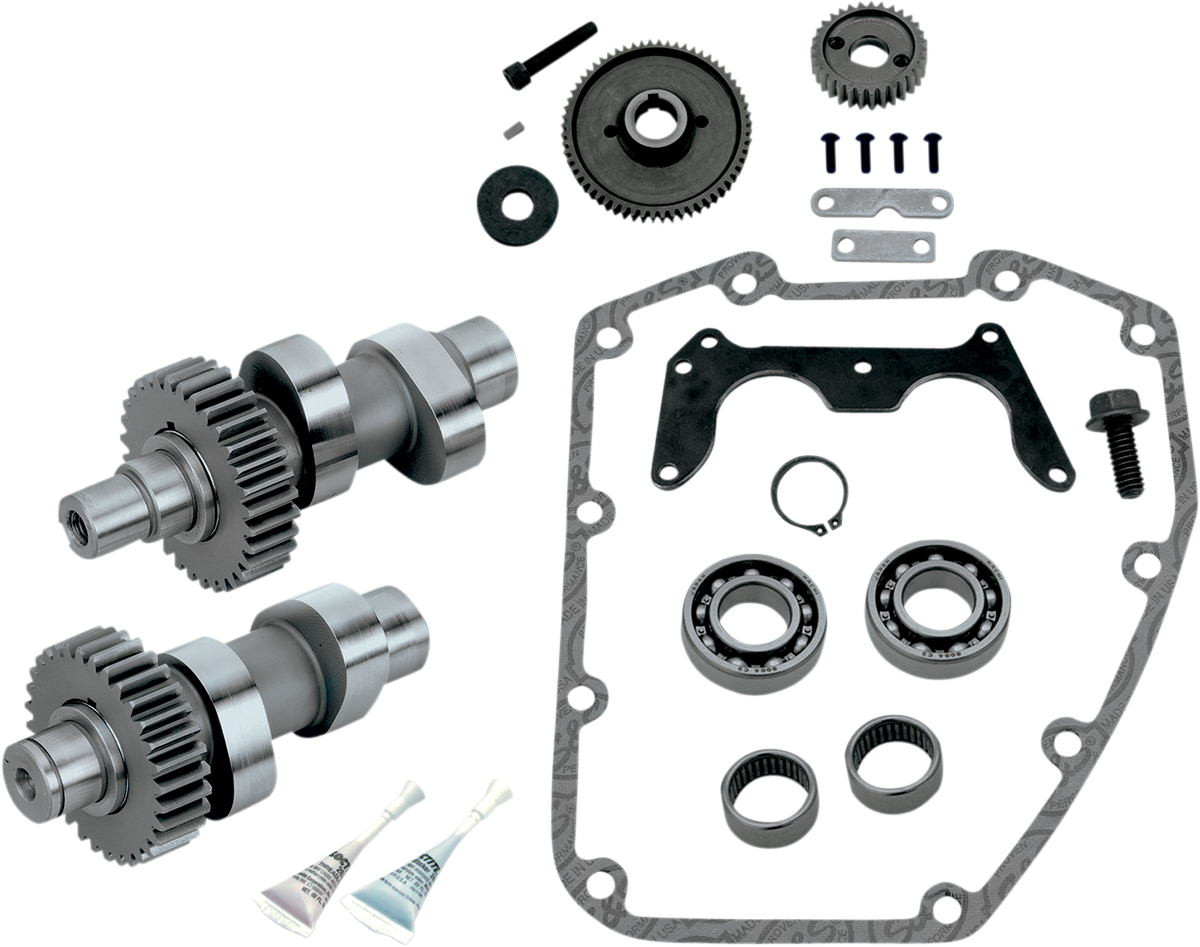

S&S CYCLE Camshaft Kit – 583G – Gear Drive – Twin Cam

Key Features

• Reverses the rear cam’s direction of rotation, providing additional operating clearance between cam lobes, making higher cam lifts possible
• Increase valve timing accuracy by eliminating timing chain lash and loosely fit stock chain
• Provides strong low end torque and horsepower
• Strongest from 1500-5000 rpm
• Material must be removed from inner surface of the stock gear cover to install
• A hydraulic press and other professional level tools are required for installation
• Cam bearings and gaskets must be replaced
• S&S recommends that adjustable pushrod/cover kit be used (sold separately)
• Kit includes camshafts, inner gears, outer drive gears, inner, outer bearings, gasket and instructions
• Made in the USA
• Due to inherent characteristics of gear drives, more valve train noise maybe heard.
• Installer must check coil bind, valve to valve clearance and valve to piston clearance.
• Not recommended for engines having compression ratios greater the 10.1:1

Technical Specifications

• Weight: 6.10 lbs
• Supplier Number: 330-0107
• Unit of Measure: Kit
